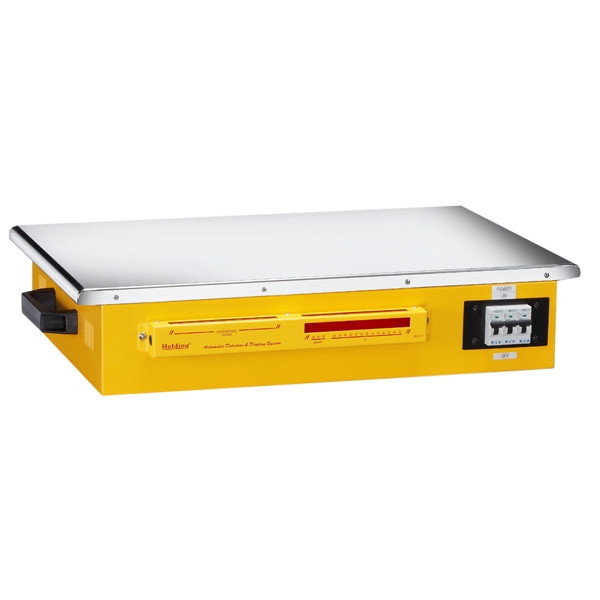

Super Powerful Demagnetizer (w/t Stand) HD-620(AD)

Model : HD-620(AD)

Special three-phase demagnetization coil design, optimizing the demagnetization performance.
Suitable for large-sized workpieces, thick steel plates, & molds.
Suitable for materials that are difficult to demagnetize, such as high carbon steel, bearing steel, nickel-chromium steel, spring steel, mold steel, etc.
Demagnetization range 400mm.
Demagnetization thickness 70 ~ 80mm.
Desktop machine, moving parts on the machine to demagnetize.
An ergonomical designed stand can be installed to ease the operation.
An Automatic Detection system (HD-AD11) can be installed to automatically detect the approach of the workpiece, and automatically power off if no part is coming.

Quantity :

Inquiry

MODEL	DIMENSIONS（LxWxH）	INPUT VOLTAGE		WEIGHT	DUTY CYCLE
HD-620(AD) + STAND	488 × 648 × 758 mm	3Φ AC220V	11A	97.5KG	Continuous use
HD-620(AD) + STAND	488 × 648 × 758 mm	3Φ AC380V	6.5A	97.5KG	Continuous use

MODEL	DIMENSIONS（LxWxH）	INPUT VOLTAGE		WEIGHT	DUTY CYCLE
HD-620(AD)	443 × 618 × 129 mm	3Φ AC220V	11A	69.5KG	Continuous use
HD-620(AD)	443 × 618 × 129 mm	3Φ AC380V	6.5A	69.5KG	Continuous use

Automatic Detection System (HD-AD11)

* Automatic detection the apporaching of parts

* Turn off the power automatically, when there is no part for 10~30 seconds.

* Full electronic control, very reliable and durable.

* Can save more than 60% of power.
