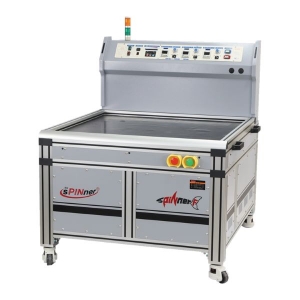

The Powerful sPINner (Max Cap.18kg)

The Powerful sPINner (Max Cap.18kg)
Model : HD-790F
Product Description
  • The largest sPINner in the series.
  • The grinding force is upgraded. Using a high-density magnetic field, the magnetic field intensity is increased by 150~250%.
  • Increase the grinding height by 50~80%, the grinding force by 80~120%, and shorten the grinding time by 20~50%.
  • Max grinding capacity: About 18kg parts at a time.
  • Max grinding area: Ø830 mm
    • Can place one large grinding tank with Ø830 × 250 mm size. (The tank is a standard accessory)
    • Can place smaller containers with different sizes or shapes
  • 3-stage grinding programs with independent adjustment functions for grinding force (speed), grinding time and rotation direction.
proimages/Misc/Patended2.png

Inquiry

Features
proimages/Spin_powerful/example.png


*Grinds for High Precision
Best for High-Precision Parts such as gears, special screws.
proimages/GrindingComp/04Hobbing/投影片16.jpg

Best for fragile, thin, long partsproimages/design/products/Spinner/About/三集合英文.jpg



*Grinds Every Corner
The pins reach every corner. Best for irregular parts.

proimages/design/products/Spinner/About/無死角工件-英.png

More Info


Effect
*Deburring & Slightly Rounding Sharp Edgesproimages/GrindingComp/01Milling/投影片01.jpg

proimages/GrindingComp/01Milling/投影片05.jpg


*Polishing, Removing Machining Marks and Oxide Layersproimages/GrindingComp/12Brass/投影片49.jpg

proimages/GrindingComp/05Laser/投影片24.jpg

More Grinding Cases


Video


Specifications

MODELDIMENSIONS（LxWxH）CONTAINER SIZE (mm)POWERWEIGHT
HD-790F 1050 x 1140 x 1220 mm Ø 830 x 250 3Φ AC220/380V
(50/60HZ)		 270KG
MODELMAX GRINDING CAPACITY（KG）ACCESSORIES
HD-790F Copper, Stainless steel,
Aluminum, Zinc
(Non-Magnetic material)		 18 KG 1. Stainless pins 24KG
2. Plastic container 2 set
3. Separating container 1 set
4. Magnetic Sleeve 2 set
5. Grinding liquid (20,000c.c.)
6. Operation manual
Iron, Steel, Stainless steel
(Magnetic material)		 7.5 KG


Operations

proimages/sPINner/operation/765-E.jpg

1.Power on button: Push to turn on the machine.
2.Power off button: Push to turn off the machine.
3.Complete beep on/off: Turn on or off the beep when the grinding is finished.
4.Grinding speed & error message display: Show the grinding speed (frequency). Show error messages when the machine failures.
5.Frequency display (LED).
6.Grinding program 1 : 6a is the timer, and 6b is the rotation direction control and 6c is speed adjustment.
7.Grinding program 2 : 7a is the timer, and 7b is the rotation direction control and 7c is speed adjustment.
8.Grinding program 3 : 8a is the timer, and 8b is the rotation direction control and 8c is speed
9.Start: Push the button to start the operation.
10.Stop: Push the button to stop the operation.
